3D watch builder, prototype

An SKX-type diver assembled from real mod parts: each insert, crystal, dial, chapter ring, bezel and strap below is a product you can buy, modelled to the sizes its seller publishes, with a link to the product page. Where a seller publishes no size, the part says so. The case and the hands are generic for now. Drag to turn the watch; the top view is one button away.

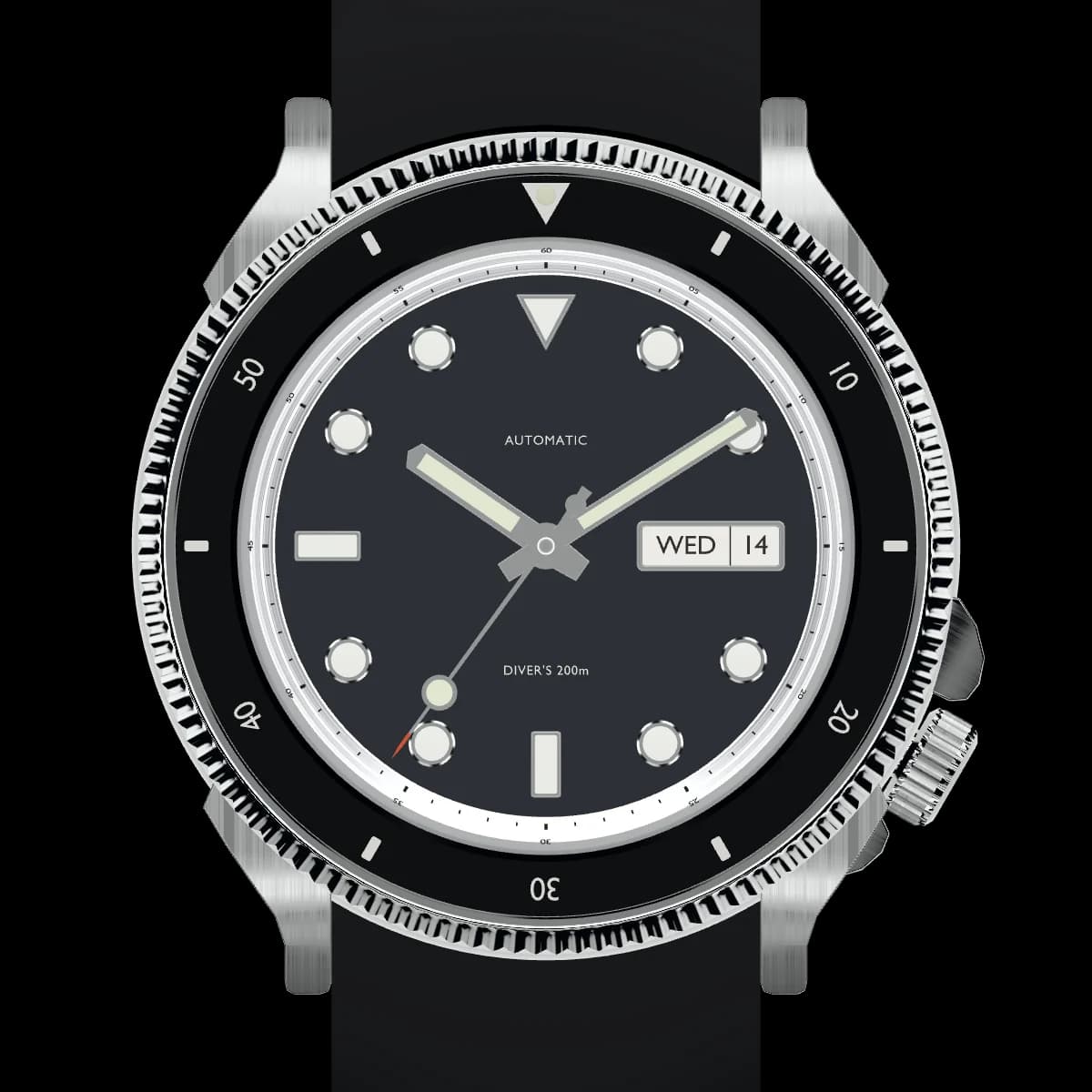

SKX-type diver watch built from mod parts, seen from the top

Poster

Movement
Bezel
Bezel insert
Chapter ring
Dial
Crystal
Generic case and bezel metal
Generic hands and indices
View

Fits with a change

Each check compares published figures: the movement maker’s drawings, the sellers’ pages and our own design for the generic parts. A seller’s compatibility list is shown as a claim, not a measurement.

In this build

Checks

  1. Crown, stem and date windowNeeds a change

    The case puts the crown at 4 o’clock. The TMI NH36 stem points to 3 o’clock and runs through the pivot, so the movement turns 30° clockwise in the case, and the dial turns with it. The stock disc, which the maker lists for crown 3 o’clock / window 3 o’clock, then reads at 4 o’clock, but the window of SKX009 dial (Lucius) is at 3 o’clock. It needs a disc printed for a crown at 4 o’clock: a seller lists TMI NH36 for that crown (“NH36 Day-Date @ 4H Crown for a case with the crown at four”), which the maker's table does not.

    • Case crown: 120° (4 o’clock) (our design)[3]
    • SKX007 crown: 4 o’clock (measured)[4]
    • TMI NH36 stem: at 3 o’clock (maker)[5]
    • TMI NH36 stem line: through the hand pivot (maker)[6]
    • TMI NH36 stock disc reads at: 3 o’clock (maker)[5]
    • SKX009 dial (Lucius) window: at 3 o’clock (drawn by us, not published)[2]
    • TMI NH36 for a crown at 4 o’clock: listed by a seller (seller)[7]

  2. Calendar: dial window and movementFits

    TMI NH36 turns the day and date that SKX009 dial (Lucius) shows.

    • TMI NH36 functions: hours, minutes, centre seconds, date, day (maker)[1]
    • SKX009 dial (Lucius): day-date window (drawn by us, not published)[2]

  3. Dial feet and the movement’s foot holesFits

    Lucius Atelier makes SKX009 dial (Lucius) for a crown at 4 o’clock, as in this case, so its feet meet the holes of the turned TMI NH36 at 2:36 and 8:33.

    • TMI NH36 foot holes: 1:36 and 7:33 with the stem at 3 o’clock (maker)[8]
    • Case crown: 120° (4 o’clock) (our design)[3]
    • SKX009 dial (Lucius) feet: made for a crown at 4 o’clock (seller)[2]

  4. Dial diameterFits

    SKX009 dial (Lucius) is 28.5 mm, the TMI NH36 dial size.

    • TMI NH36 dial: 28.5 mm (maker)[6]
    • SKX009 dial (Lucius): 28.5 mm (seller)[2]

  5. Lucius Atelier: movements listed for SKX009 dial (Lucius)Fits

    Lucius Atelier lists NH36 for SKX009 dial (Lucius).

    • Lucius Atelier lists: 7S26, 7S36, 4R15, 4R35, 6R15, NE15, NH25, NH26, NH35, NH36 (seller)[2]

  6. Hands the movement drivesFits

    TMI NH36 drives 3 hands and Baton has 3.

    • TMI NH36 functions: hours, minutes, centre seconds, date, day (maker)[1]
    • Baton bores: 3 hands: 1.5 mm / 0.88 mm / 0.198 mm (our design)[9]

  7. Hand boresFits

    Hour, minute and seconds bores match the TMI NH36 hand sheet.

    • TMI NH36 hand bores: 1.5 mm / 0.88 mm / 0.198 mm (maker)[8]
    • Baton: 1.5 mm / 0.88 mm / 0.198 mm (our design)[9]

  8. Hands under the crystalFits

    The seconds hand tops out at 1.91 mm; the crystal underside is at 2.4 mm, leaving 0.49 mm against the 0.45 mm the maker asks for.

    • Baton made for: TYPE M (our design)[9]
    • TMI NH36 TYPE M seconds hand top: 1.91 mm above the dial, 0.45 mm least clearance (maker)[6]
    • TMI NH36 installed height: 7.59 mm (seller)[7]
    • SKX-type 42.5 crystal underside: 2.4 mm above the dial (our design)[3]

  9. Insert in the bezelFits

    The 38 mm insert fills the 38 mm recess.

    • CT656 ceramic, black outside diameter: 38 mm (seller)[12]
    • Coin edge, steel insert recess: 38 mm (our design)[13]

  10. Crystal in the caseFits

    The 31.5 mm crystal fits the 31.5 mm seat.

    • Islander 007-Flat diameter: 31.5 mm (seller)[14]
    • SKX-type 42.5 crystal seat: 31.5 mm (our design)[3]

  11. Strap between the lugsFits

    The 22 mm strap fills the 22 mm gap between the lugs.

    • NMK801 rubber, black lug width: 22 mm (seller)[15]
    • SKX-type 42.5 lug width: 22 mm (our design)[3]

  12. Crystaltimes: CT656 ceramic, black on SKX007Fits

    Crystaltimes lists SKX007 for CT656 ceramic, black. A seller's claim, not a measurement.

    • Crystaltimes says: “Suitable for: SKX007 SKX009 SKX011 and ALL variants” (seller)[12]

  13. namokiMODS: Namoki numerals, silver on SKX007Fits

    namokiMODS lists SKX007 for Namoki numerals, silver. A seller's claim, not a measurement.

    • namokiMODS says: “Compatible with SKX007” (seller)[11]

  14. Lucius Atelier: SKX009 dial (Lucius) on SKX007Fits

    Lucius Atelier lists SKX007 for SKX009 dial (Lucius). A seller's claim, not a measurement.

    • Lucius Atelier says: “Fit Models SNK803, SNK805, SNK807, SNK809, SKX007, SKX009, SKX011 and more” (seller)[2]

  15. Long Island Watch (Islander): Islander 007-Flat on SKX007Fits

    Long Island Watch (Islander) lists SKX007 for Islander 007-Flat. A seller's claim, not a measurement.

    • Long Island Watch (Islander) says: “Fits: Seiko SKX007, SKX009, SKX173, SKX175, SKXA35” (seller)[14]

  16. namokiMODS: NMK801 rubber, black on SKX007Fits

    namokiMODS lists SKX007 for NMK801 rubber, black (Use supplied SKX007 fat spring bars; strap has 22 mm lug width.). A seller's claim, not a measurement.

    • namokiMODS says: “Fits all Seiko SKX007” (seller)[15]
Not checked (5): a figure we need is not published

  1. Window distance from the centreNot checked

    Not checked: Lucius Atelier publishes no window position for SKX009 dial (Lucius); our 8.45 mm is drawn to the maker's sheet, so it cannot confirm itself.

    • TMI NH36 day-date window: centre 8.45 mm from the pivot, 7 mm × 2 mm (maker)[8]
    • SKX009 dial (Lucius) window: centre 8.45 mm from the pivot (drawn by us, not published)[2]

  2. Dial centre hole and the hand pipesNot checked

    Not checked: the centre hole of SKX009 dial (Lucius) (Lucius Atelier publishes none).

    • TMI NH36 needs a dial hole of: 2.05 mm (maker)[8]

  3. Movement in the caseNot checked

    Not checked: the movement seat of SKX-type 42.5 (our case spec has none yet).

    • TMI NH36 casing diameter: 29.36 mm (maker)[10]

  4. Chapter ring in the caseNot checked

    Not checked: namokiMODS publishes no outside diameter for Namoki numerals, silver; our 31 mm is drawn to fit, so it cannot confirm the fit.

    • Namoki numerals, silver outside diameter: 31 mm (drawn by us, not published)[11]
    • SKX-type 42.5 bore: 31 mm (our design)[3]

  5. Chapter ring over the dialNot checked

    Not checked: namokiMODS publishes no opening for Namoki numerals, silver; our 27.8 mm is drawn to fit, so it cannot confirm the fit.

    • Namoki numerals, silver opening: 27.8 mm (drawn by us, not published)[11]
    • SKX009 dial (Lucius) diameter: 28.5 mm (seller)[2]

Sources

  1. Time Module Ltd., Product Line-Up - Mechanical (NH0&NH3); NH34/NH35/NH36 product blocks
  2. Lucius Atelier, SEIKO SKX009 Diver Dial (genuine Seiko part, sold by Lucius Atelier)
  3. Our design: SKX-type diver case, crown at 4 (generic part of the 3D builder)
  4. Worn & Wound, Seiko SKX007 Review - Worn & Wound
  5. Time Module Ltd., Technical Guide & Parts Catalogue, Cal.NH3 Series (NH34A/35A/36A/37A/38A/39A) - Automatic Mechanical
  6. Time Module Ltd., Watch Movement Specification and Drawing - NH35A (drawing pages read: Appearance-1, Hand Fitting, Hand Setting Stem, Dial-1, Dial-2, Hands)
  7. Lucius Atelier (seller), Seiko Mod Dial Compatibility Guide: NH34, NH35, NH36 (blog article)
  8. Time Module Ltd., Watch Movement Specification and Drawing - NH36A (drawing pages read: Hand Fitting, Hand Setting Stem, Dial, Hands)
  9. Our design: Baton hands with lollipop seconds, NH35A TYPE M (generic part of the 3D builder)
  10. Time Module Ltd., Watch Movement Specification and Drawing - Standard Mechanical Movement NH36A
  11. namokiMODS, SKX007/SRPD Chapter Ring: Numerals Style Silver Finish
  12. Crystaltimes, SKX007/SRPD Flat Ceramic Bezel Insert - CT656
  13. Our design: Coin-edge steel bezel, 120 clicks (generic part of the 3D builder)
  14. Long Island Watch, Flat Sapphire Crystal to replace OEM Hardlex on SKX007, 009 #007-Flat (Islander)
  15. namokiMODS, NMK801 FKM Curved End SKX/SRPD Rubber Strap: Black
Measurements
First frame with the watch
…
GLB transferred
… in … files
JS transferred (page)
…
Triangles / draw calls
…
Programs, geometries, textures
…
Canvas, DPR
…
Last material swap
…
Stress, 5 s of motion
—

Real parts in the catalogue (9)

Bezel: namokiMODS, SKX007/SRPD Knurled Bezel: Polished Black FinishS$42.00Clicks 120 (seller); Material 316 stainless steel (seller); Bezel gaskets 0.8 mm fitted, 0.7 mm spare (seller); Outside diameter 41.9 mm (not published: the page gives no sizes; drawn to the SKX bezel size); Insert recess 38 mm (not published: the page gives no sizes; drawn to take the 38.00 mm SKX inserts); Height 2.5 mm (not published: the page gives no sizes; drawn to the stock SKX bezel profile)
Bezel insert: Crystaltimes, SKX007/SRPD Sloping Bezel Insert - Silver/Black SKX Style - CT6135$18.00Outside diameter 38 mm (seller); Inside diameter 31.7 mm (seller); Thickness at the outer edge 1 mm (seller); at the inner edge 1.5 mm (seller)
Bezel insert: Crystaltimes, SKX007/SRPD Flat Ceramic Bezel Insert - Black/White/Red - CT651$36.00 (out of stock on 15.10)Outside diameter 38 mm (seller); Inside diameter 31.7 mm (seller); Thickness 1.1 mm (seller)
Bezel insert: Crystaltimes, SKX007/SRPD Flat Ceramic Bezel Insert - CT656$36.00Outside diameter 38 mm (seller); Inside diameter 31.7 mm (seller); Thickness 1.1 mm (seller)
Chapter ring: namokiMODS, SKX007/SRPD Chapter Ring: Numerals Style Silver FinishS$26.00Outside diameter 31 mm (not published: the page gives no sizes; drawn to the case bore); Inside diameter 27.8 mm (not published: the page gives no sizes; drawn to rest on the 28.5 mm dial); Height 2.4 mm (not published: the page gives no sizes; drawn to reach the crystal)
Dial: Lucius Atelier, SEIKO SKX009 Diver Dial (genuine Seiko part)82 SGD (page marked discontinued on 15.10)Diameter 28.5 mm (seller); Finish Matte Bluish Black (seller); Lume Lumibrite (seller); Window day-date 7.0 x 2.0 at 8.45 mm (not published: SKX009 is a day-date dial; window drawn to the TMI NH36A Dial sheet); Markers SKX layout (not published: triangle at 12, batons at 6 and 9, round plots elsewhere; the brand name is left out on purpose)
Crystal: Crystaltimes, Flat Sapphire Crystal for SKX007/SRPD - CT025$40.00Diameter 31.5 mm (not published: seller says 'as OEM'; SKX007 crystals are 31.5 mm (Islander 007-Flat)); Thickness 2.9 mm (not published: drawn like the Islander 007-Flat (2.9 mm))
Crystal: Long Island Watch (Islander), Islander Flat Sapphire Crystal for SKX007, SKX009 (#007-Flat)$45.00Diameter 31.5 mm (seller); Thickness 2.9 mm (seller)
Strap: namokiMODS, NMK801 FKM Curved End SKX/SRPD Rubber Strap: BlackS$69.00Lug width 22 mm (seller); Length 120 + 80 mm (seller); Thickness 3.0 to 4.5 mm (seller); Buckle brushed stainless steel tang buckle (seller); Wrist 138 to 205 mm (seller); Taper 4.5 mm at the lugs to 3.0 mm at the tail (not published: the page gives the range, not which end is thicker)

Movement numbers behind the model

TMI NH35A sheet: dial Ø28.5 mm, stem radial at 3H and 1.92 mm below the main plate, hand tops 0.78 / 1.37 / 1.91 mm above the dial (TYPE M). The day-date window of the SKX009 dial follows the NH36A sheet.
